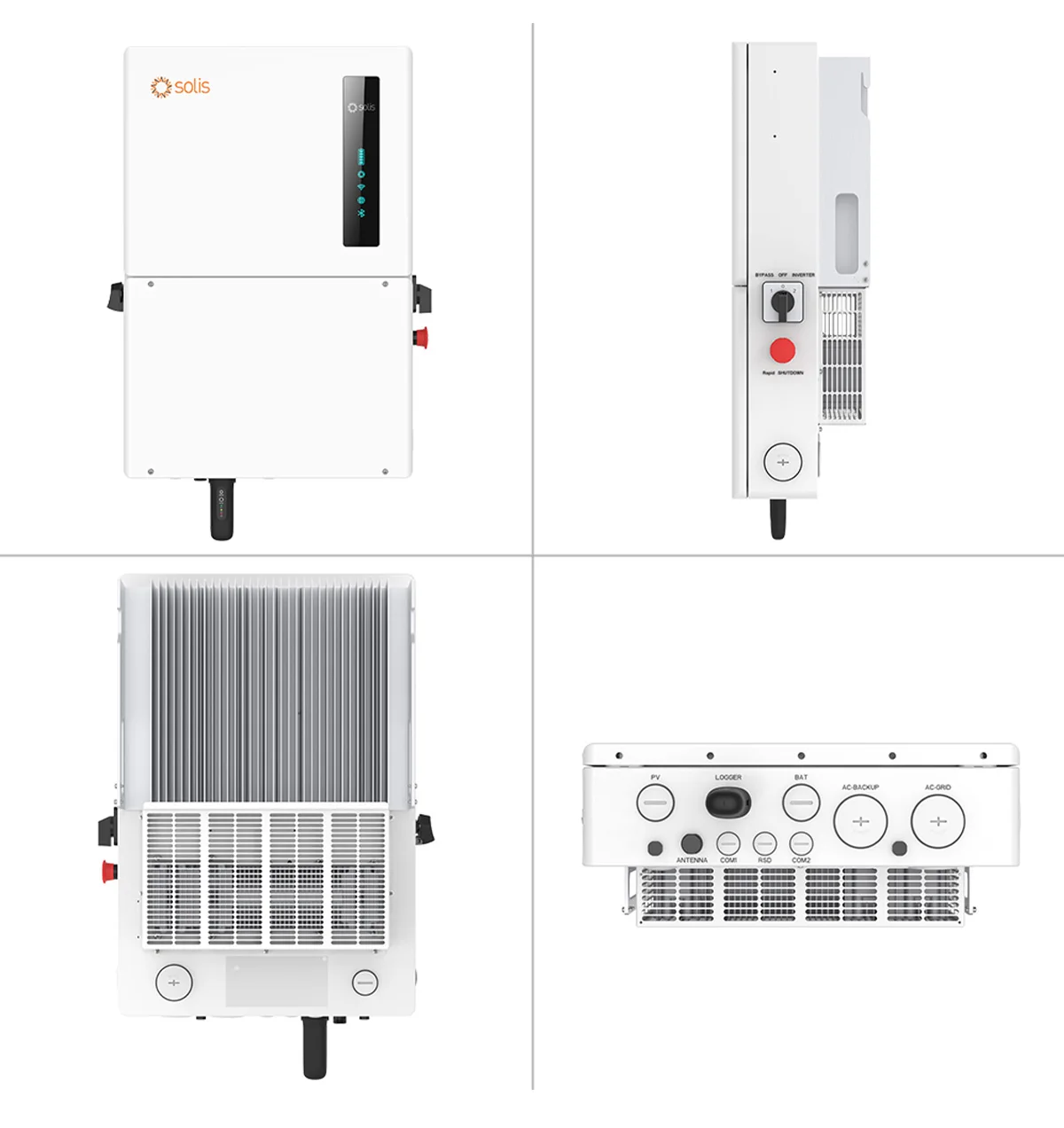

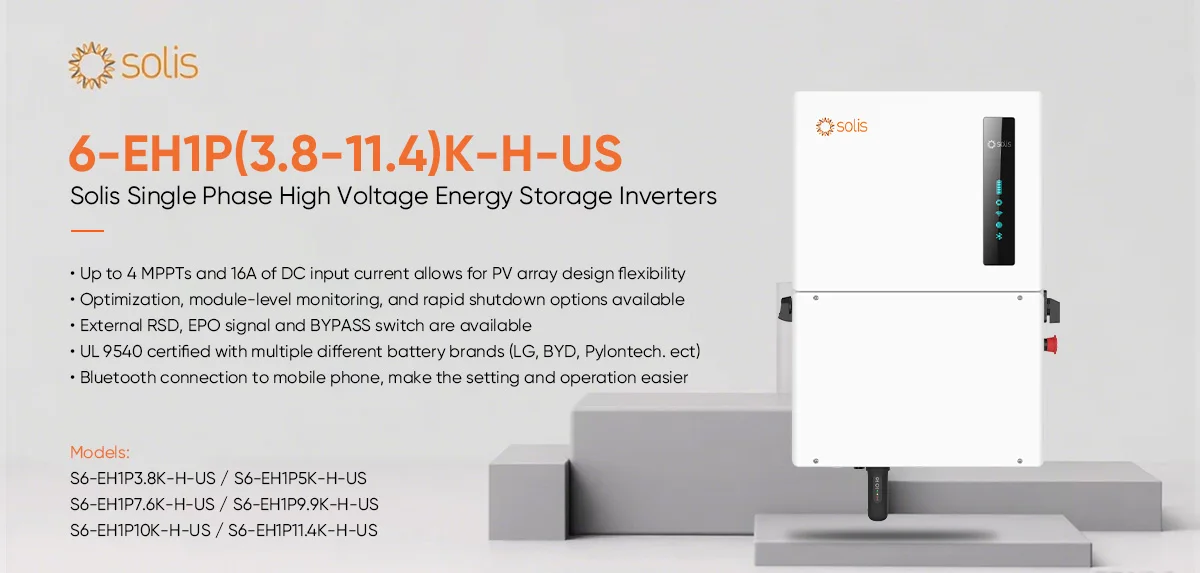

2025 EU Stock Solis Hybrid Solar Inverter Single Phase S6-EH1P(3.8-11.4)K-H-US Solar Energy Storage System for 110V & 220V

DC Input (PV)

Max. input voltage

600 V

Rated voltage

380 V

Start-up voltage

80 V

MPPT voltage range

80 - 520 V

Max. input current per string

16 A

Max. short circuit current per string

25.6 A

Number of MPPTs / Number of strings per MPPT

2 / 1

Energy Storage

Battery type

Lithium-ion

Battery voltage range

120 - 500 V

Maximum charge / discharge current

25 A

50 A

Battery communication

CAN / RS485

Number of batteries per inverter

See Battery Compatibility Sheet

AC Output (Grid)

Rated output power

3800 W

5000 W

7600 W

9990 W

10000 W

11400 W

Rated output voltage

3800 VA

5000 VA

7600 VA

9990 VA

10000 VA

11400 VA

Rated frequency

240 V

Rated output current

60 Hz

Max. output current

15.8 A

20.8 A

31.7 A

41.7 A

41.7 A

47.5 A

THDi

< 3%

AC Input (Grid)

Input voltage range

211 - 264 V

Grid pass through power

15.8 A

20.8 A

31.7 A

41.7 A

41.7 A

47.5 A

Max. input current

23.8 A

31.2 A

47.6 A

62.6 A

62.6 A

71.3 A

Frequency range

58.8 - 61.2 Hz

AC Output (Backup and Off-grid)

Rated output power

3800 W

5000 W

7600 W

9990 W

10000 W

11400 W

Max. apparent output power

6.1 kVA, 10 s

8 kVA, 10 s

12.2 kVA, 10 s

16 kVA, 10 s

16 kVA, 10 s

18.2 kVA, 10 s

Back-up switch time

< 10 ms

Phase power

240 V Split-Phase

Rated output voltage (L1-L2)

240 V

AC output voltage range

211 - 264 V

Rated grid frequency

60 Hz

Frequency range

55 - 65 Hz

Rated AC output current

15.8 A

20.8 A

31.7 A

41.7 A

41.7 A

47.5 A

Max. output overcurrent protection, 10 s

25.4 A

33.3 A

50.7 A

66.7 A

66.7 A

76 A

Max. allowable phase imbalance

100%

Backup support configurations

Whole-home and dedicated loads

Power factor

> 0.99 (0.8 leading - 0.8 lagging)

THDv (@linear load)

< 3%

Efficiency

PV Max. efficiency

97.0%

97.6%

PV CEC efficiency

96.5%

97.0%

Battery charged by PV max. efficiency

98.5%

Battery charged / discharged to AC max. efficiency

97.0%

Protection

Ground fault detection

Yes

Residual (leakage) current detection

Yes

Integrated AFCI

Yes

DC reverse-polarity protection

Yes (PV only)

Manual inverter bypass switch

Yes

Rapid shutdown NEC 2017

Integrated SunSpec-certified Transmitter

Compatible RSD receivers

See MLRSD Compatibility Sheet

Protection class / Over voltage category

I / II

General Data

Dimensions (W × H × D)

19.21 × 28.35 × 8.66 in (490 × 720 × 220 mm)

22.05 × 29.53 × 8.66 in (560 × 750 × 220 mm)

Weight

52.43 lbs (23.78 kgs)

71.74 lbs (32.54 kgs)

Topology

Transformerless

Self-consumption (night)

< 20 W

Operating ambient temperature range

-13°F to 140°F (-25°C to 60°C)

Ingress protection

TYPE 4X

Noise emission (typical)

< 30 dB(A)

Self-consumption (night)

< 20 W

Cooling method

Natural cooling

Mounting type

Wall Bracket

Max. operation altitude

13,120 ft (4000 m)

Compliance

UL1741SB, IEEE1547-2018, UL1699B, UL1998, FCCPart15ClassB, California Rule21, NEC 690.12-2020, CAN/CSA C22.2107.1-1, HECO Rule
14H, Luma Listed

Generator support

Yes; up to 25 kW (with a Solis Power Hub)

Features

DC connection

1 in. knockouts for conduit (×2) on the side and bottom; Spring clamp terminals

AC connection

1.5 in. knockouts for conduit (×3) on the side and bottom; Spring clamp terminals

Interface

LED indicator & Bluetooth + APP

Integrated revenue grade meter

Optional

Monitoring platform

SolisCloud (modbus map and API sharing available upon request)

Revenue grade meter

Integrated ANSI C12.20 option

Communication

RS485, Optional: Cellular, Wi-Fi, LAN
