Specification
Category | Specifications | JY501-180K | JY501-150K | JY501-120K |
Standard | CCS PLC communication | DIN70121 and ISO15118 | ||
EMC/Safety | Compliant with IEC 61851-21-2:2018 ; IEC 61851-1:2010/EN 61851-1:2017/IEC 61851-23:2014/IEC 61851-24 | |||
Protection Class | IP54/IK10 (Touch Screen:IK08) | |||
Equipment information | cooling | Forced-air cooling | ||
Mounting | Floor stand | |||

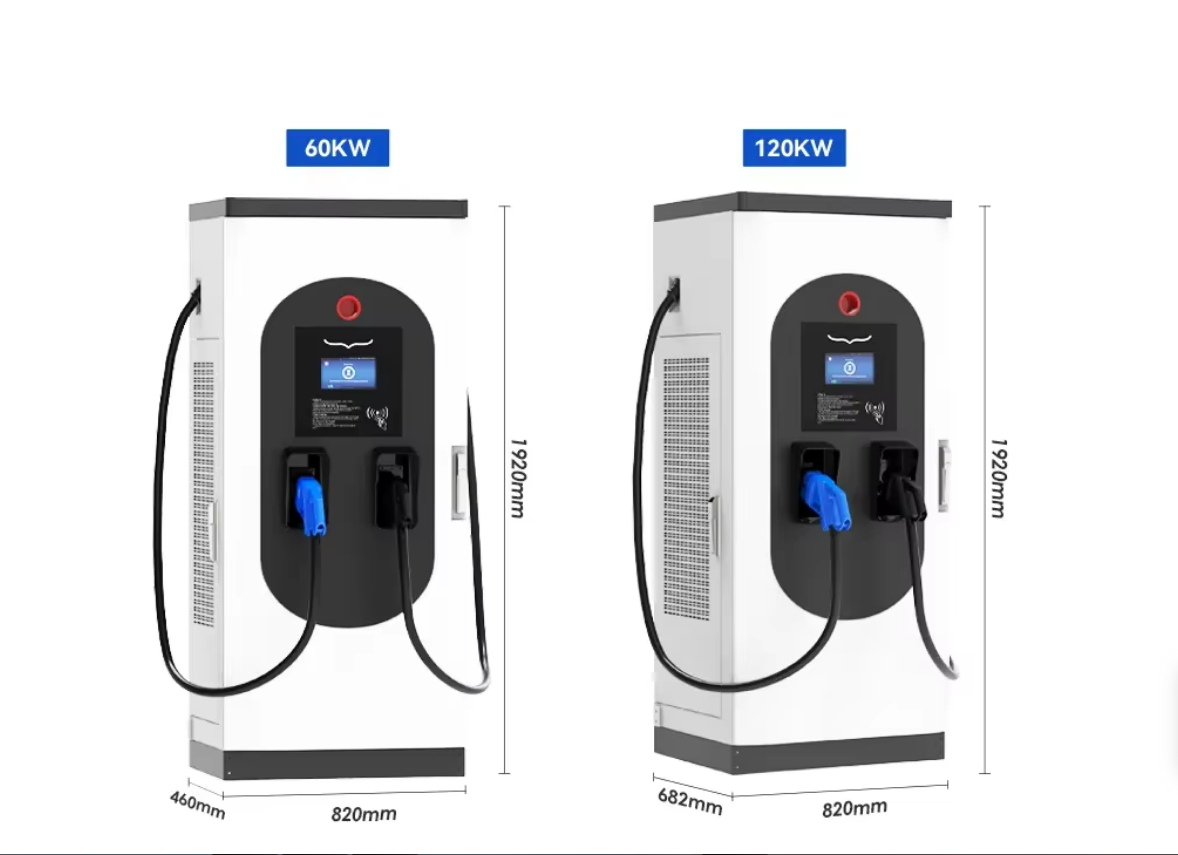

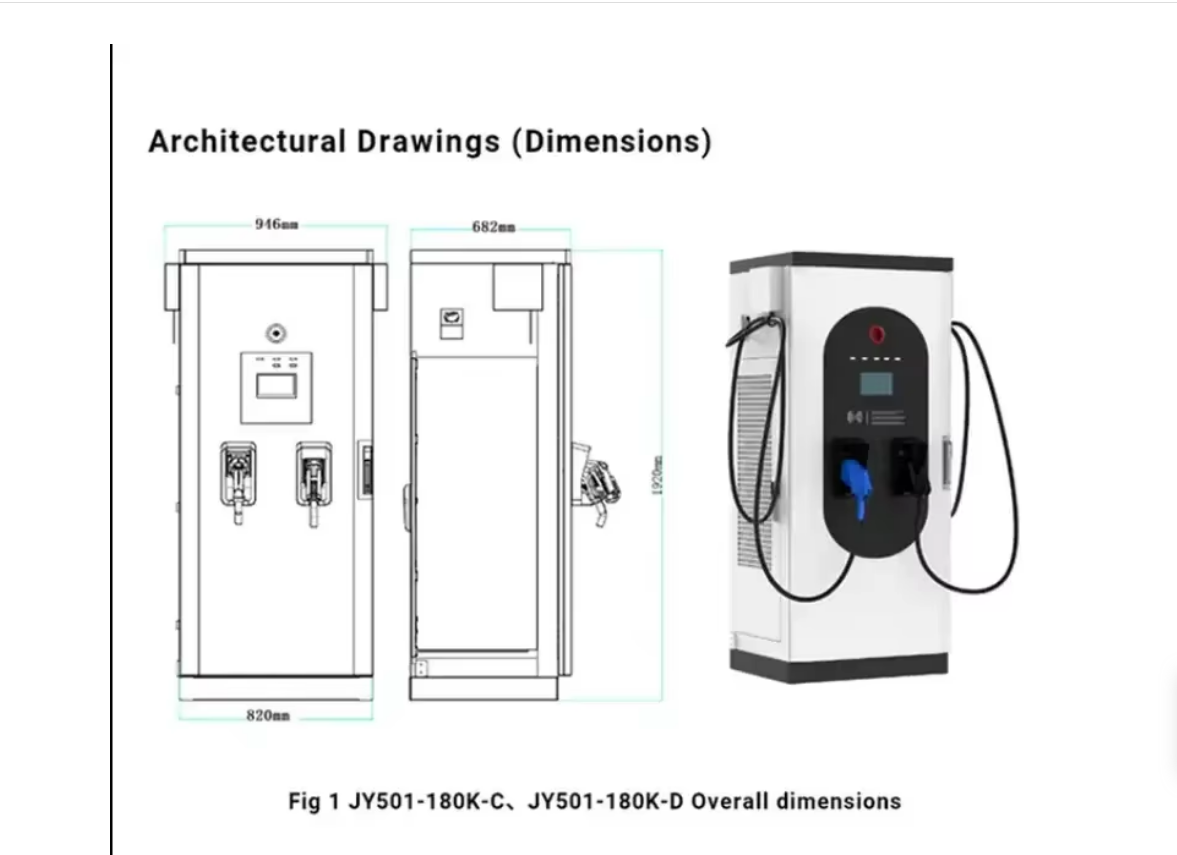

Dimensions(W*D*H mm) | 820mm*682mm*1920mm | |||
Weight(kg) | about 400 | |||
Shell Material | sheet metal | |||
Working enviroment | Ambient temperature | -30 ~ +50°C , full power output below 50℃ Power derating 10%/ ℃ above 50℃ | ||
Storage temperature | -40 ~ +70°C | |||
Working humidity | 0 ~ 95% | |||
Working altitude | ≤2000 m without derated | |||
Input parameters | AC Frequency | 45-65Hz | ||
AC Voltage | 3-phases+N+PE,400±10%Vac | |||
Power Factor | >0.99 | |||
Total harmonic current | <5% (Rated input ) | |||
Output parameters | DC Voltage accuracy | <±0.5% | ||
Output DC voltage range | CCS:150-1000V CHAdeMo:150-500V | |||
Max DC output current | CCS:200A ;CHAdeMO:125A | |||
Max DC output power | 180KW | 150KW | 120KW | |
Max system efficiency | >94.0%(25℃,Rated input and output) | |||
AC output | AC type2 22kW/32A | |||
Function and Interface | HMI | 7" TFT Touch Screen LCD,RFID, Power(G) /3*Alarm(R)/3*Charging(B) panel LED | ||
Metering | 1 AC energy meter and 2 DC energy meter | |||
Monitor interface | OCPP 1.6J , LAN 10M/100M and optional inner LTE wireless modem support | |||
Charging Protection | / | Short circuit protection, Overvoltage protection, Undervoltage protection | ||
IMD | Isulation monitoring | |||
/ | Reverse polarity protection, Overtemperature protection | |||
RCD | RCD-A mian protection and RCD-B for AC connector protection | |||
Selling Point
1.TUV, CE, and FCC certified: Our 60kw DC Fast Charger, issued with TUV, CE, and FCC certificates, ensures safety and quality standards for electrical installations and equipment.
2.OCPP: Equipped with OCPP1.6J, the charger is suitable for multiple charging protocols, enhancing compatibility and convenience for users.
3.50kw to 150kw options: We offer a range of power options from 50kw to 150kw to cater to diverse consumer needs.
4.Commercial application: This 60kw DC Fast Charger is ideal for use in commercial spaces, providing efficient and reliable charging solutions for electric vehicles.
5.IP 55/IK10 protection: With an IP 55/IK10 protection rating, the charger is robust, contributing to its durability and ruggedness in challenging environments.
Company Introduction
Minglei New Energy is an innovative enterprise in the field of renewable energy dedicated to comprehensive solutions in product research and development, manufacturing, sale, and service. The company also emphasizes sustainability through the recycling of batteries. It is backed by a research team of senior experts from prestigious institutions including Huazhong University of Science and Technology and Tsinghua University. This team specializes in the advancement of lithium-ion batteries, driving innovation in the realm of new energy.
FAQ
1. who are we?
We are based in Shenzhen, China, start from 2023,sell to Africa(30.00%),Mid East(30.00%),Western Europe(15.00%),South Asia(10.00%),Southern Europe(5.00%),Northern Europe(5.00%),Eastern Europe(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Portable Solar System, Solar System, Solar Battery, Solar Panels, Solar Inverter
4. why should you buy from us not from other suppliers?
we can systematically offer "new energy equipment with high quality + new energy solutionson each scenarios + new energy IOT service + efferent logistics network + complete after sales service".
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP;
Accepted Payment Currency: USD,EUR,CNY;
Accepted Payment Type: T/T;
Language Spoken: English,Chinese,Arabic
